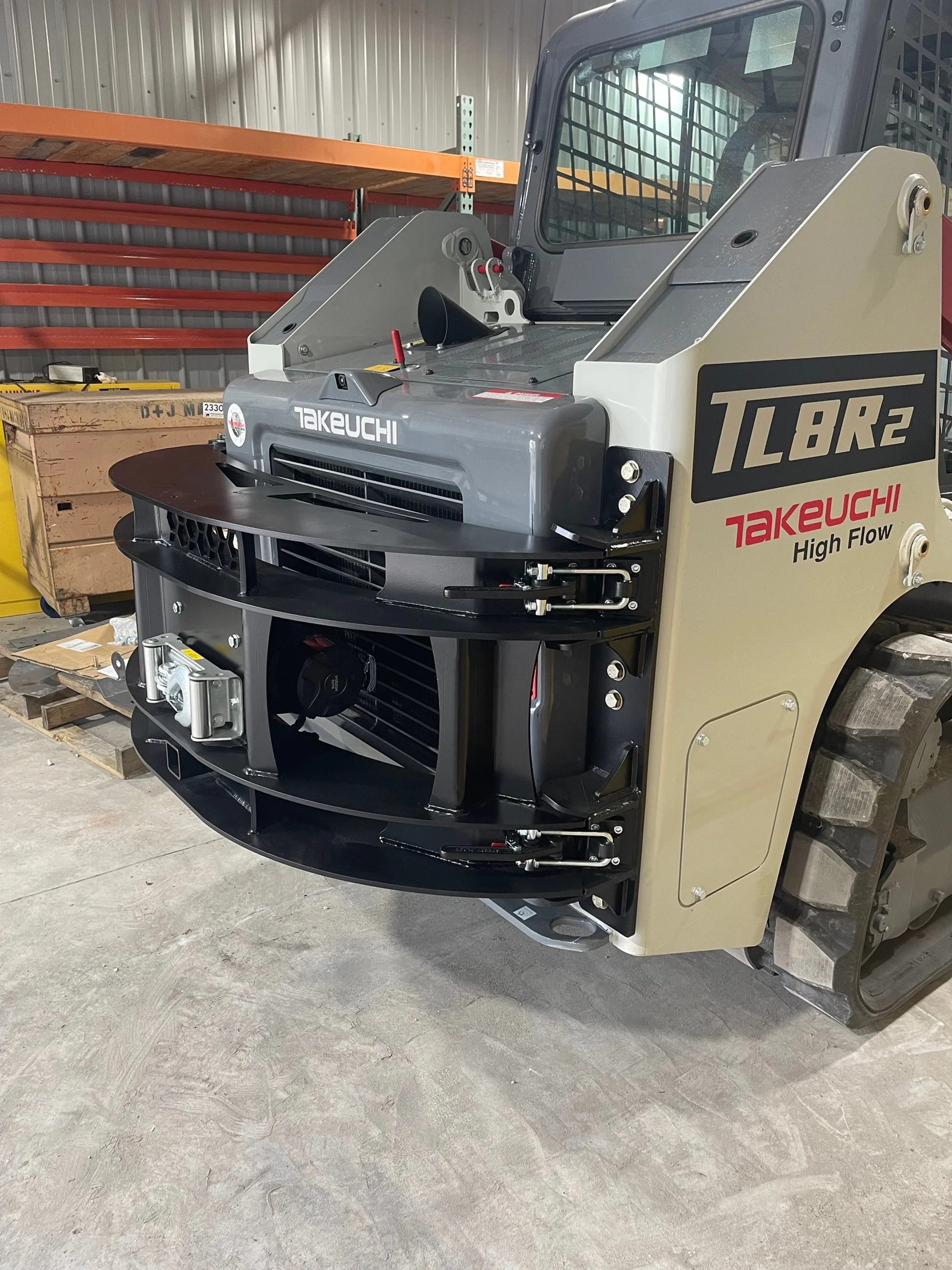

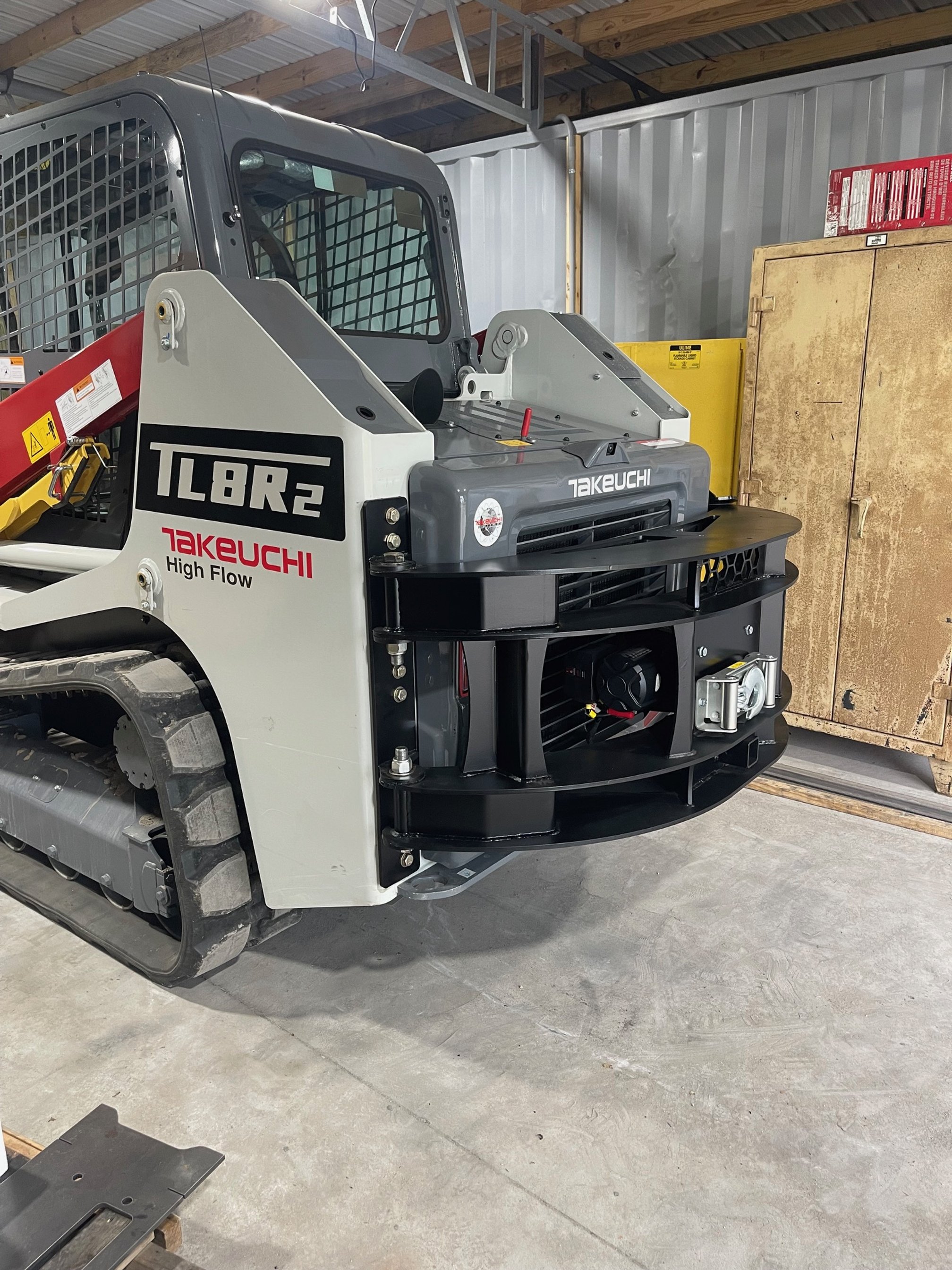

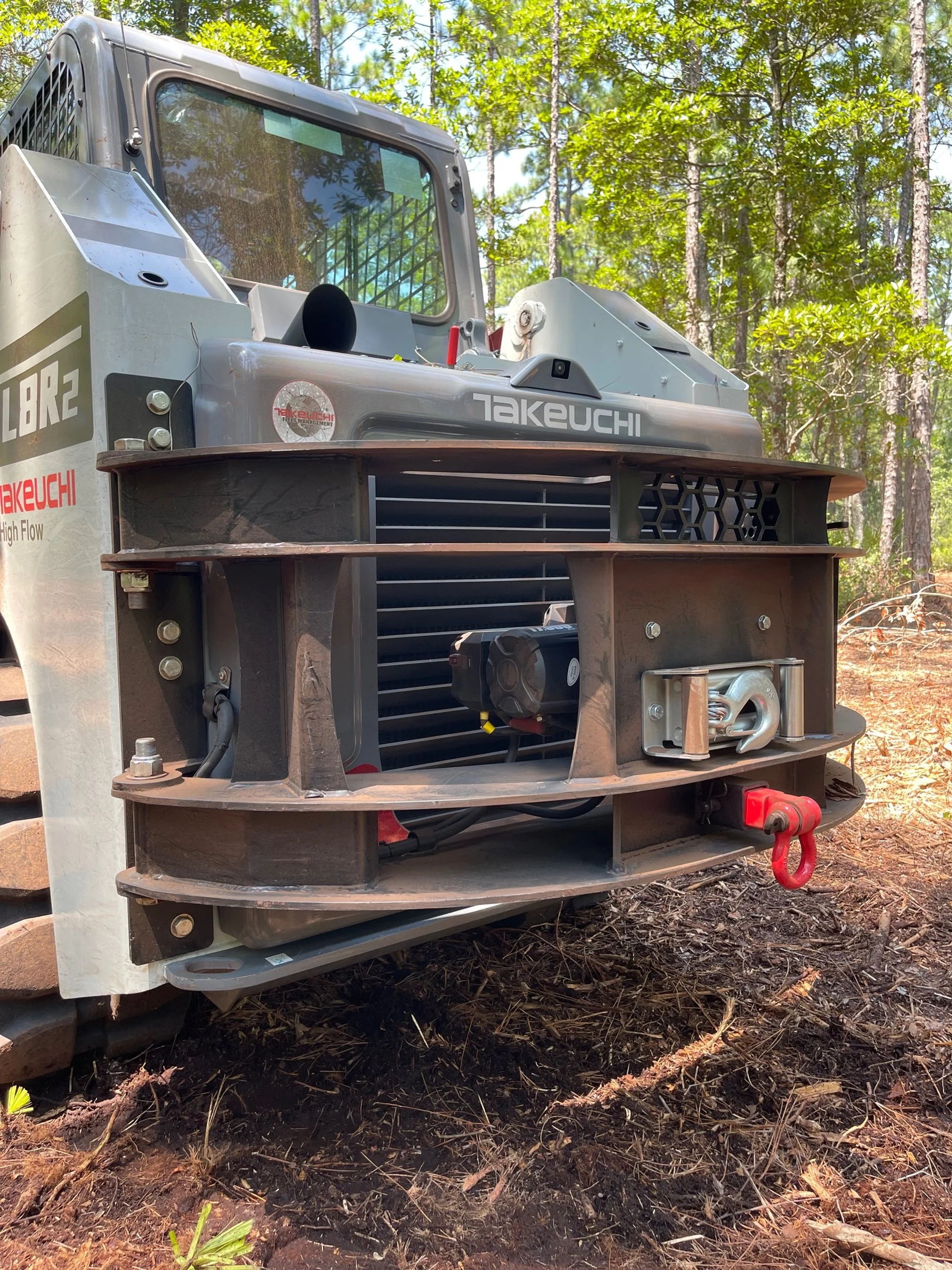

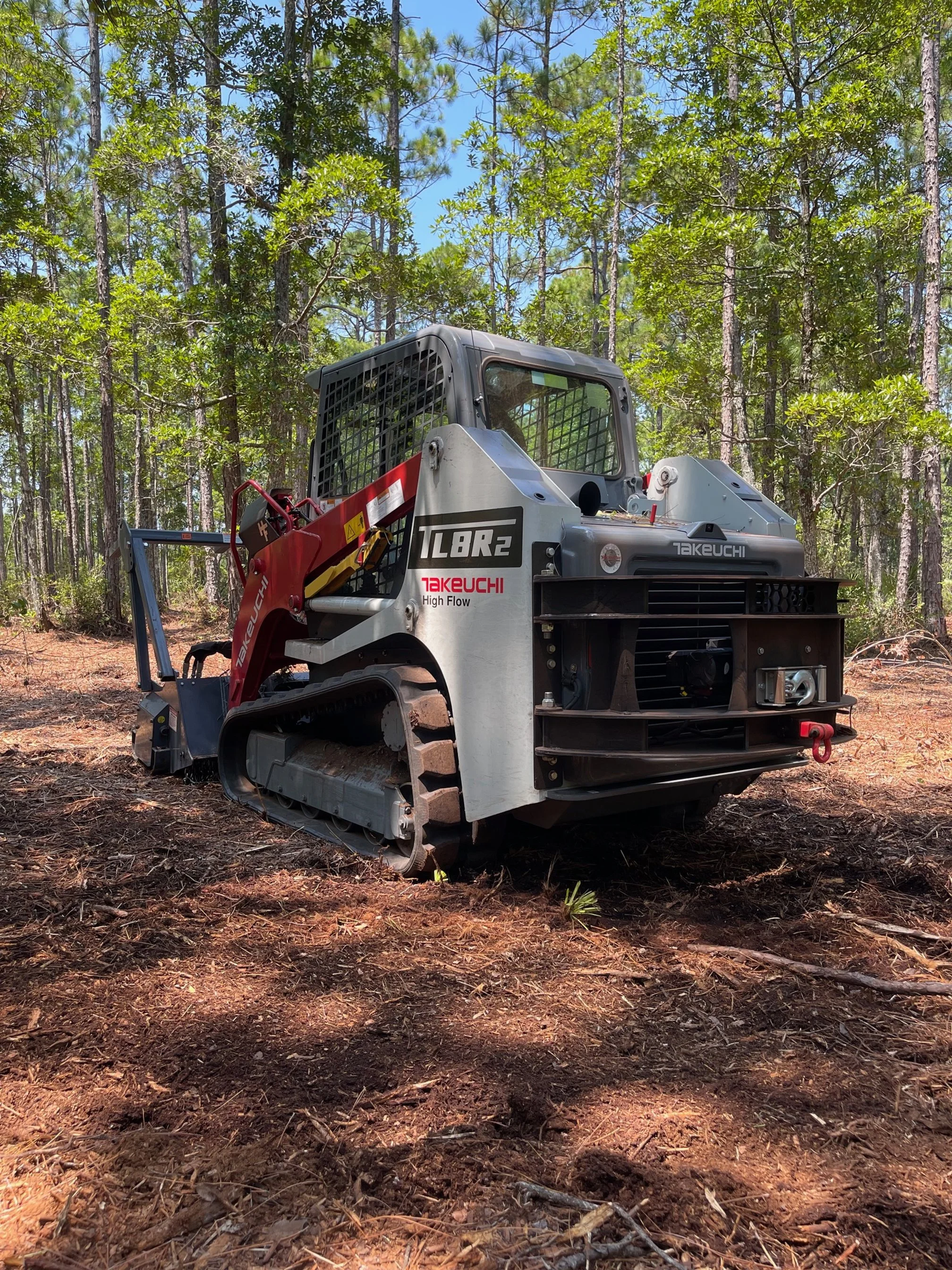

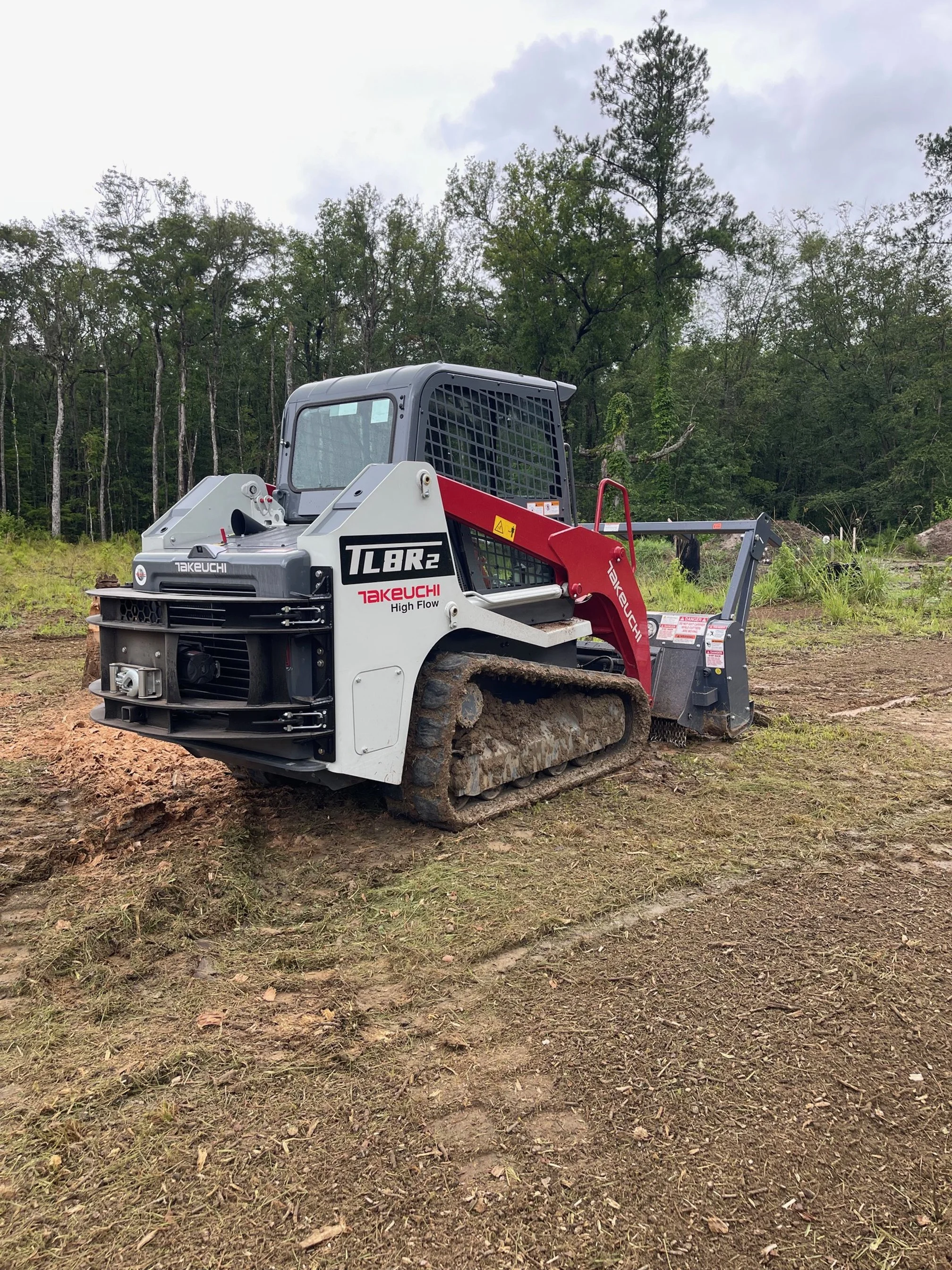

This rear swing-out winch bumper is designed specifically for the Takeuchi TL8R2 skid steer and built for extreme-duty use. CNC laser cut and precision bent from 3/8-inch thick carbon steel, this bumper is engineered to handle real-world abuse—not just look good on paper.

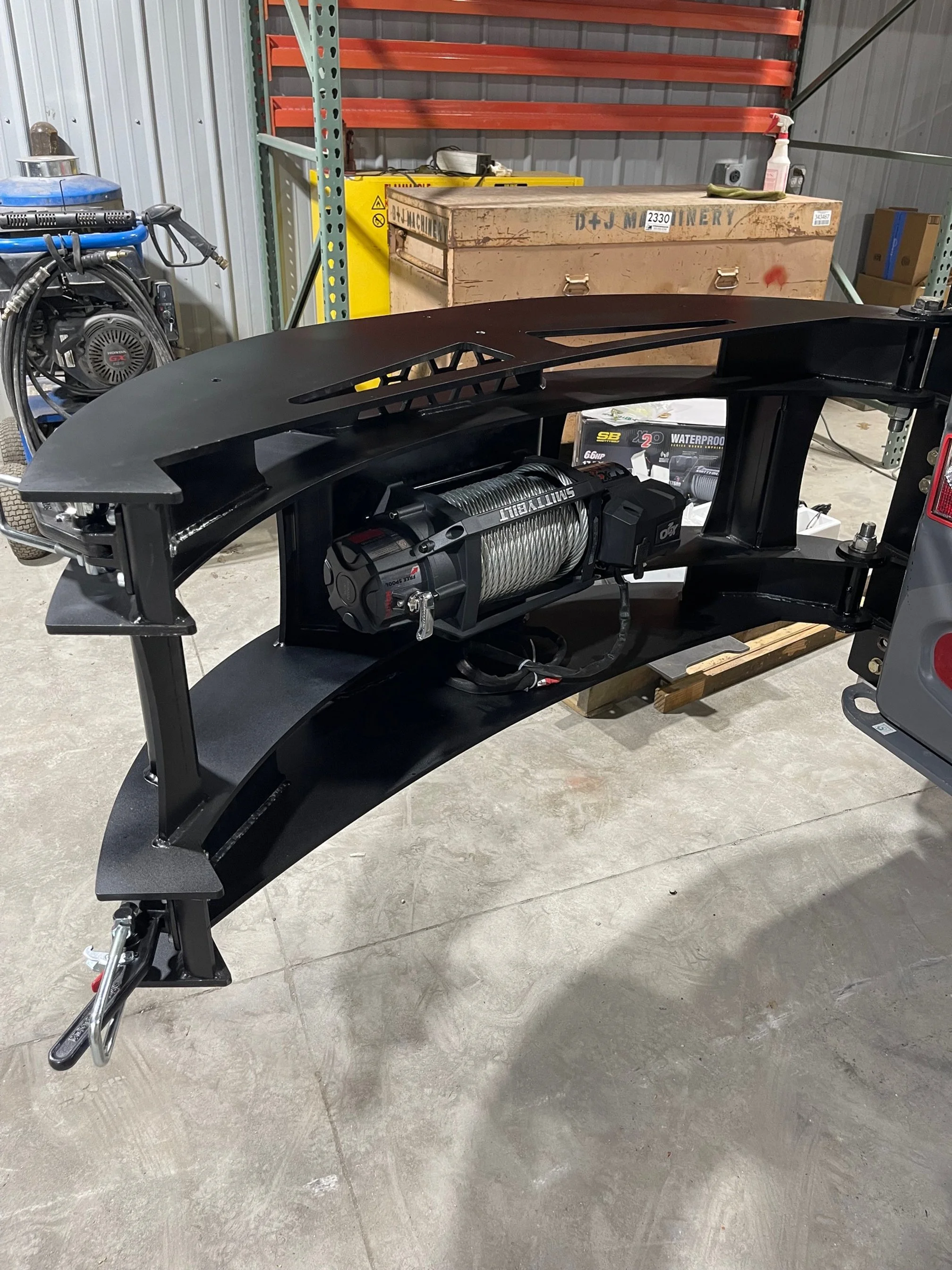

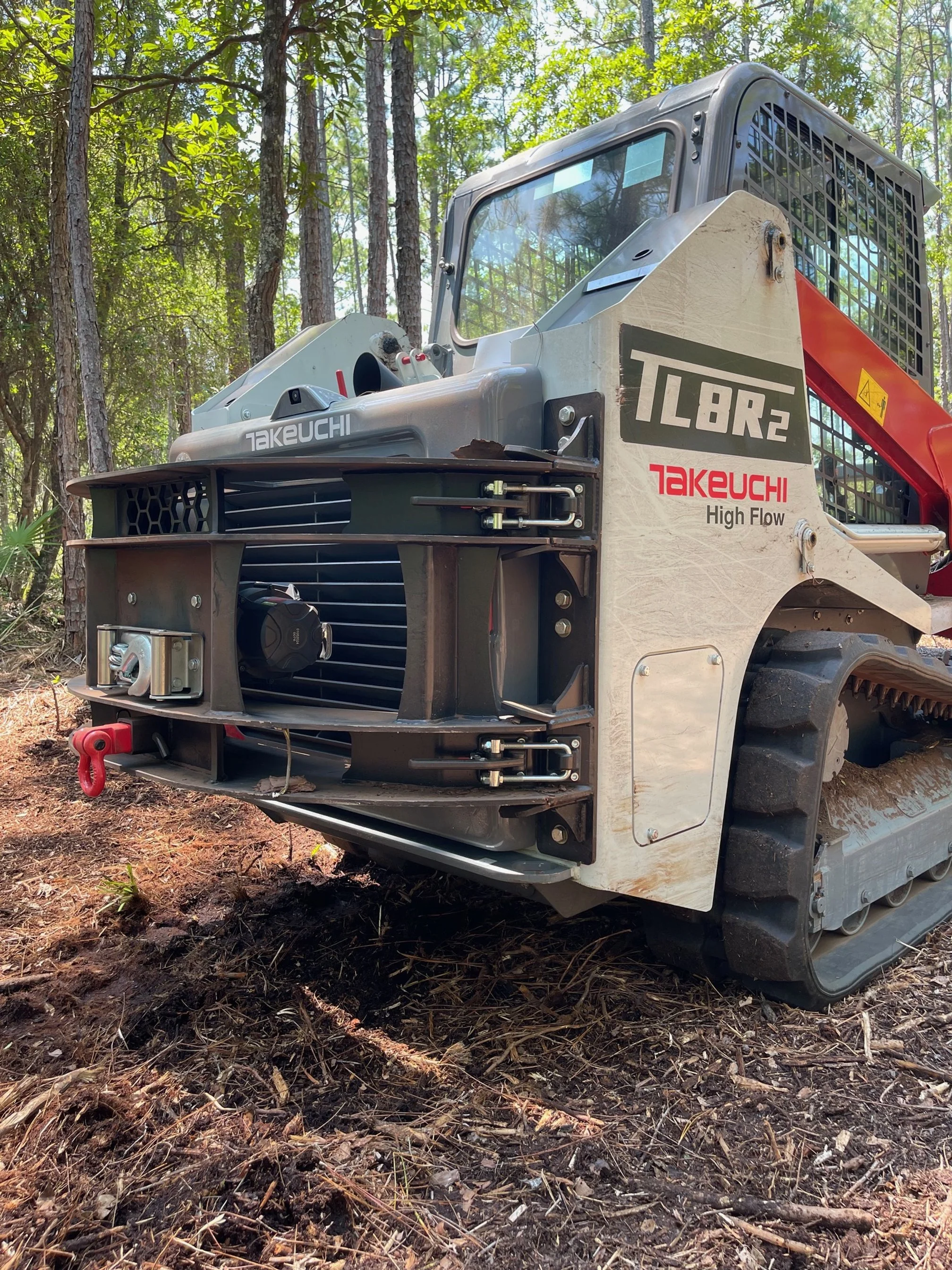

Unlike many bumpers on the market that rely on small pins that bend or seize after hard use, this design utilizes heavy-duty quick-release latches, allowing the rear door to open even after backing into obstacles. The swing-out hinge assembly is built using 1-inch thick Grade 8 bolts and 1/4-inch wall DOM tubing, eliminating weak points commonly found in pin-style hinge designs.
The bumper is designed around a Smittybilt 17,500 lb electric winch (winch not included). Without the winch installed, the bumper adds approximately 365 lbs of rear counterweight. With the winch installed, total added weight is approximately 515 lbs, providing substantial rear ballast for demanding applications.
This bumper is not the cheapest option available—but it is built with the goal of being one of the strongest rear winch bumpers on the market.
Fits Takeuchi TL8R2 skid steer
CNC laser cut and press-brake formed
3/8” thick carbon steel construction
Designed for Smittybilt 17,500 lb electric winch (not included)
Heavy-duty swing-out design
Quick-release latches (no bend-prone pins)
Swing hinge uses:
1” thick Grade 8 bolts
1/4” wall DOM tubing
Approx. 365 lbs added counterweight (bumper only)
Approx. 515 lbs total with winch installed
Winch not included
Built to order
3-4 week lead time
Ships black painted
Designed for off-road / industrial equipment use
